Chauvin Arnoux CA6117 Multifunction Tester

The Chauvin Arnoux CA 6117 Multifunction Tester is an incredibly sophisticated MFT that boasts all the usual measurement features plus several other more advanced functions that really give the user an in-depth look at system performance. Using just this tester, a professional electrician can certify whether any electrical installation conforms to international standards as well as carrying out advanced troubleshooting and servicing.

Measurement of voltage, frequency, current (via optional clamp) and resistance is possible with the Chauvin Arnoux CA 6117 whilst it can also be used to test continuity, RCDs, earth grounding, loop & line, phase rotation, and insulation. A high 1mΩ resolution is available for loop testing whilst pulse, ramp and no-trip RCD testing offers in-depth analysis on this important safety feature. B-type RCD testing is also possible with the CA6117.

Several advanced features make the Chauvin Arnoux CA6117 an extremely comprehensive tester. These include power calculation and harmonics analysis for troubleshooting in addition to voltage drop for sizing conductor diameter. A built-in fuse table provides additional functionality for fuse testing.

The Chauvin Arnoux CA6117 has several practical aspects to help the user exploit its measurement features. Most prominently, the tester has contextual information and clearly labelled inputs to help the user make the right connections for specific measurements.

Operation is quite simple with a dial and push-button interface whilst intuitive menus are displayed on the colour LCD screen. Dynamic, graphical representations of input patterns give lots of information at a glance for accelerated inspections.

Specific analysis software for the Chauvin Arnoux CA6117 helps the user save and organise readings whilst a simple supplied cable allows data transfer to PCs. Chauvin Arnoux DataView® software is also provided in order to carry out quick reporting and analysis.

Key Features
Voltage, frequency and resistance measurement
Loop & line, earth test, phase rotation, insulation testing
B-type RCD testing, ramp and pulse testing
High 1mΩ resolution for loop testing
Voltage drop for sizing conductor diameter
Integrated fuse table
Power calculation and harmonics analysis
Dynamic colour screen
Data transfer cable and software included
Cat III 600V
Hazardous voltage and improper connection warnings

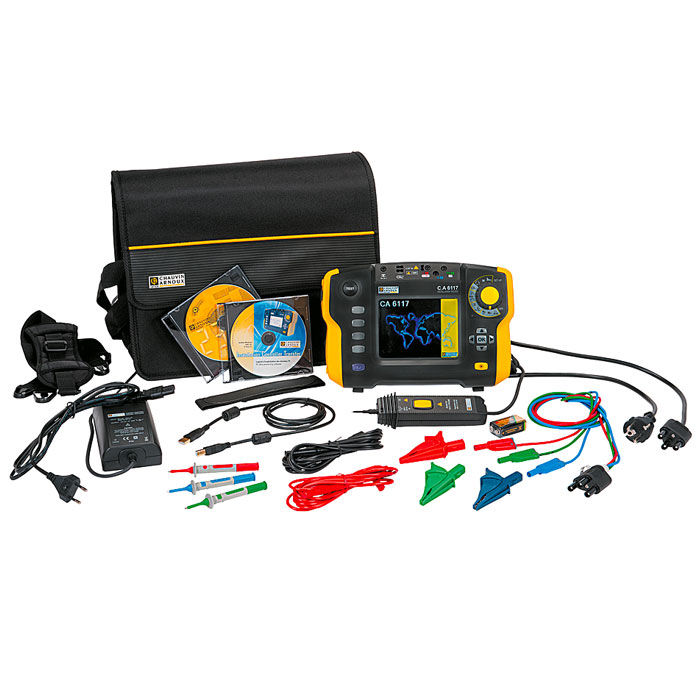

What's In The Box?
Chauvin Arnoux CA6117 Multifunction Tester
1 x carrying bag
1 x type-2 mains power pack / charger
1 x Li-Ion battery pack
1 x USB A/B cable, 1.80 m, with ferrite
1 x three-point cable
3 x safety leads (red, blue and green)
3 x test probes, Ø 4 mm (red, blue and green)
3 x crocodile clips (red, blue and green)
2 x elbowed-straight safety leads 3 m (red and black)
1 x three-point GB mains cable
1 x 2P GB mains cable
1 x remote-control probe
1 x wrist strap
1 x scratch-proof film mounted on the instrument
1 x 4-point hands-free strap
ICT data export software on CD-ROM
6 operating manuals on CD (one per language)
1 safety datasheet in 20 languages
Certificate of Conformity

Chauvin Arnoux part number: P01145460A
